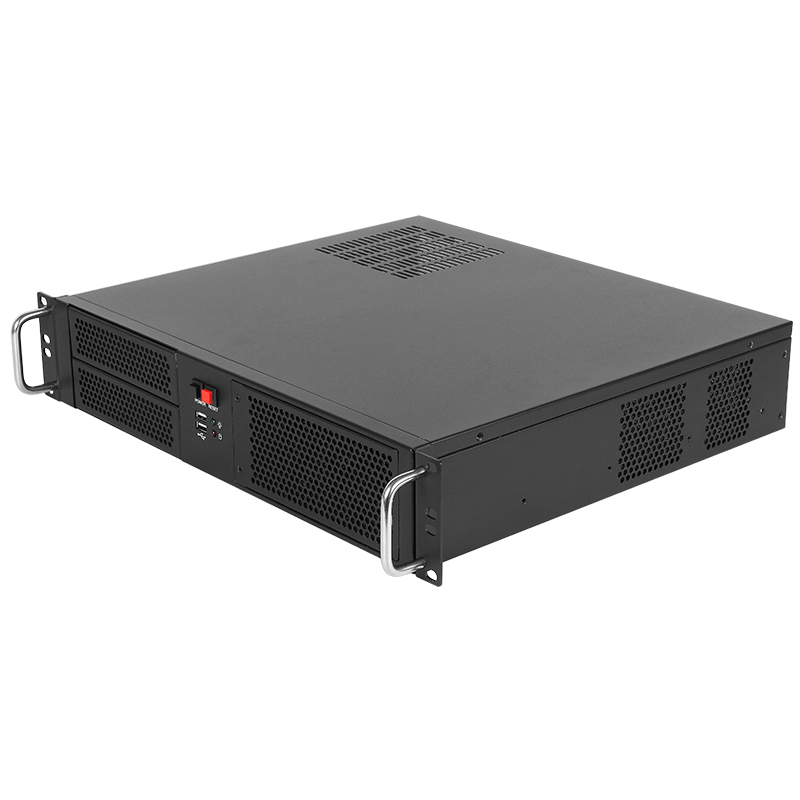

Product name: 2U rack-mount 19-inch industrial control chassis
Chassis size: width 481 × depth 390 × height 88 (MM)
(Including ear and handle)
Product color: Tech Black
Material: high quality SGCC flat galvanized steel
Thickness: Box 1.2MM
Supported optical drive: 5.25” CD-ROM drive slot * 2
Product weight: Net weight 5.4KG\Gross weight 6.8KG
Support power supply: standard ATX power supply
PS/2 Power Supply
Support expansion: 4 half-height PCI slots\2 COM ports
Support hard disk: 2 2.5” + 2 3.5” hard disk slots
(When installing 245*245MM motherboard)
2 2.5” + 4 3.5” hard disk slots
(When installing the mini motherboard)
When no optical drive is installed, two 2.5” hard disk slots can be installed
Supported fans: 2 front 8CM silent fans
Removable dust screen on front panel

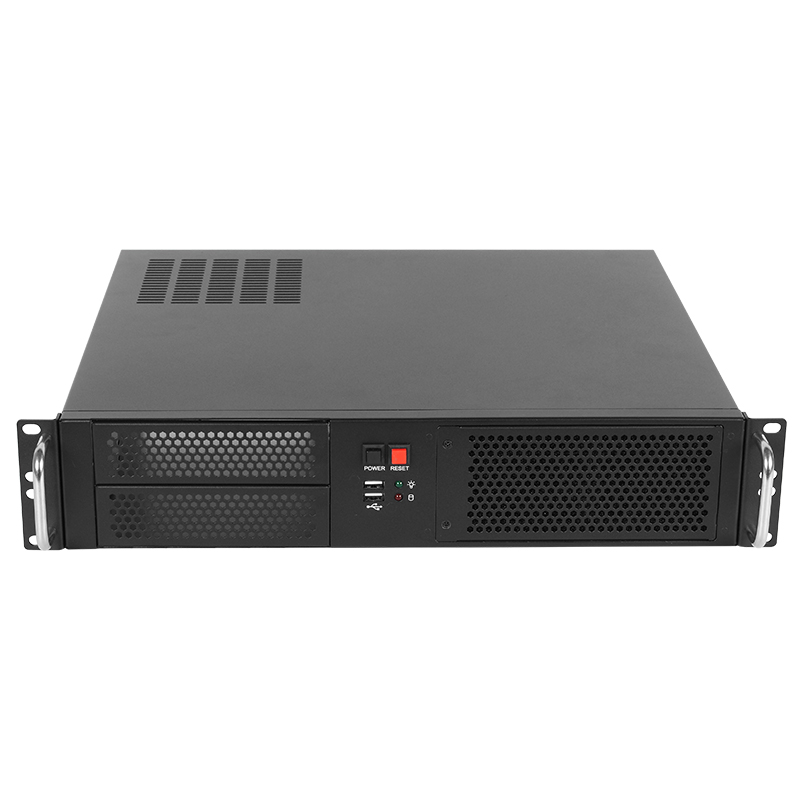

Panel: USB2.0*2\Large power switch*1\Large reset switch*1
Power indicator light*1\hard disk indicator light*1
Support motherboard: M-ATX\MINI-ITX motherboard 9.6”*9.6”
(245*245MM backward compatible)
Carton size: height 205×width 512×depth 542 (MM)
Tips: CPU fan height limit 69mm\graphics card length limit 249mm\graphics card height limit 64mm
The cardboard box is sturdy enough, and the pearl foam is generously sized.
No repackaging required, shipped directly assembled.
The edges are perfectly sealed, so they won’t scratch your hands.

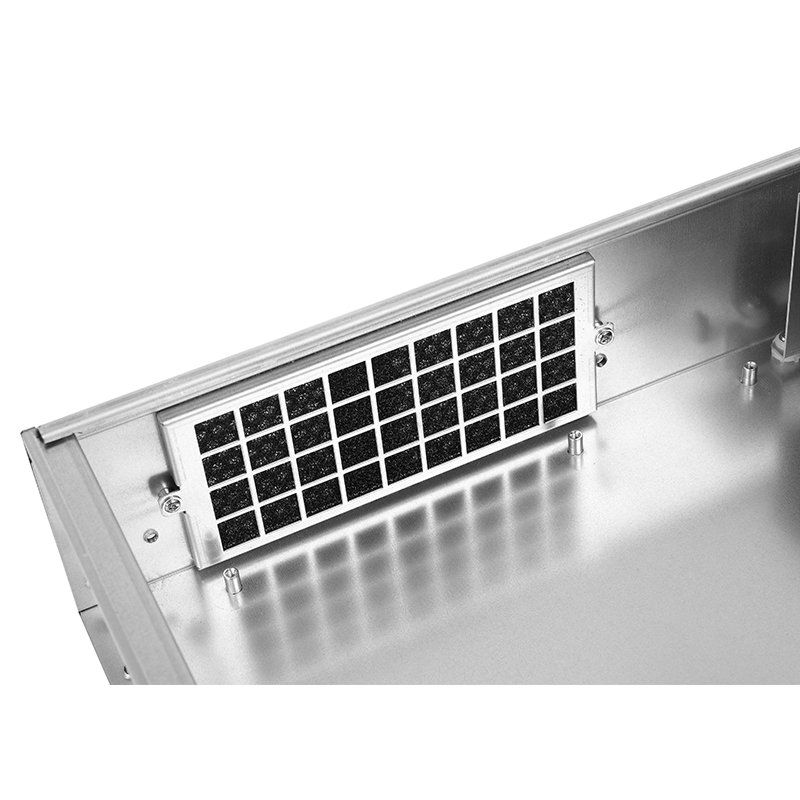

The front panel has dustproof cotton for easy cleaning.

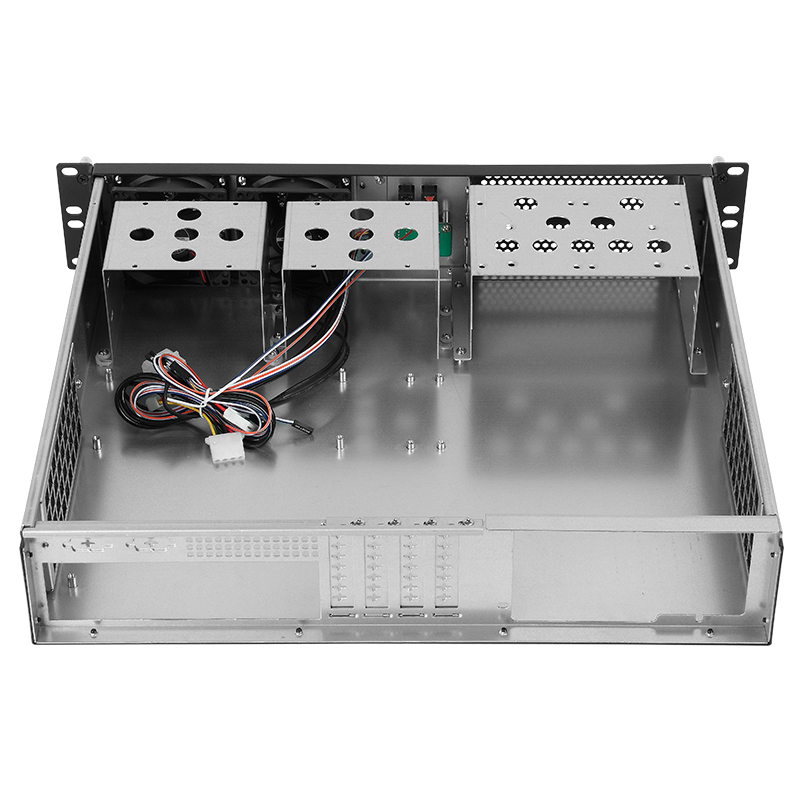

The interior is very clean, with no paint intrusion.
