2U server chassis 16\8\24 disk slots 12GB backplane compatible with CRPS1+1 redundant power supply solution

Short Description:


  • Chassis model: 2U24 disk-MMS-2224
  • Size and material: W438.4mm*H88mm*D650mm Shanghai Baosteel SGCC
  • Front description: POWER switch/RESET restart button, power on/hard disk/network/alarm/status indicator light,

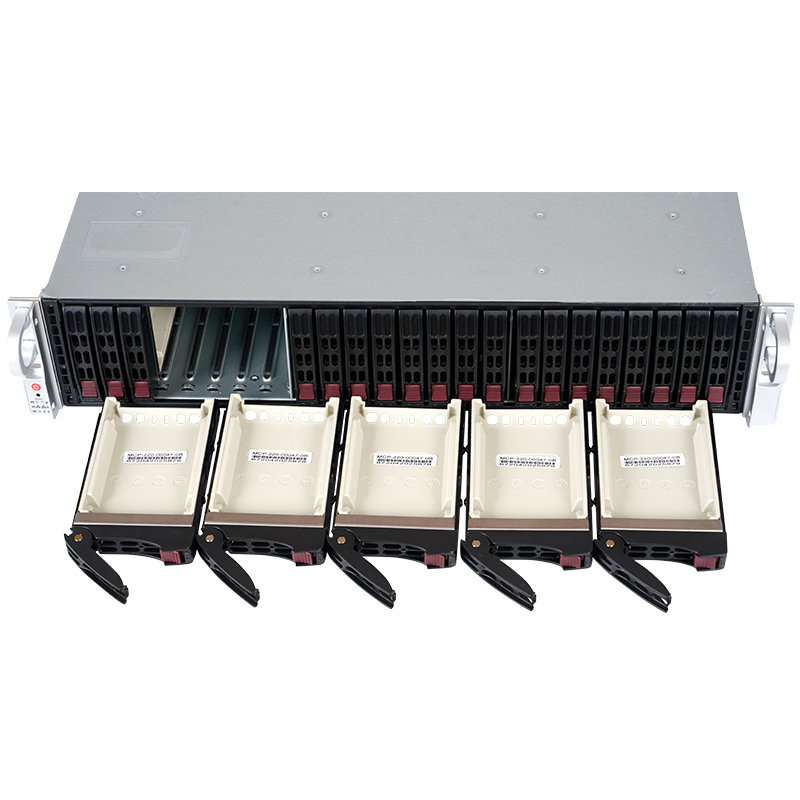

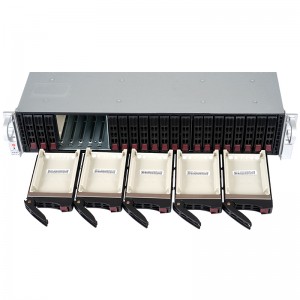

  • Storage support: The front supports 3*8-2.5" hot-swappable hard disk slots, and 2*2.5 hot-swappable OS modules are optional
  • PCI-e expansion: Supports 7 half-height PCI-e expansion slots
  • Cooling solution: Overall shock absorption/standard 4 8038 hot-swappable fans (Silent version/PWM, high-quality fans with a warranty of 50,000 hours)
  • Backplane description: Backplane specifications: 8*2.5 Hard disk support: 8sata/sas/nvme Hard disk interface: 8639 Uplink interface: 8654-8i*4/8654-i*2 Expansion chip: None
  • Power adapter: Adapt to CRPS1+1 redundant power solution
  • Support motherboard: Support motherboard X11DPG-QT, X12DPG-QT, T3DGQ
  • Packaging solution: EPE+ double-layer system white package with inner and outer boxes to meet the packaging of the whole machine
  • Advantage description: The backplane is 3*8, and the product can be equipped with 8-16-24 disks according to actual needs, which can effectively control costs. The backplane supports SATA/SAS/NVME, and more combinations.
  • Optional products: Supports customized chassis front cover Supports customized chassis LOGO Supports customized packaging Supports customized hard disk tray front panel appearance Supports whole machine OEM/ODM customization Supports optional tool-free support rails Supports optional fully removable ball guide rails Supports optional rear hot-swappable 2*2.5OS modules (except single power) Supports optional 1+0 solution CRPS power cover for redundant power supply Supports optional half-height high power consumption card 6038 fan module Supports optional PCIE to SSD bracket
  • Product Detail

    Product Tags

    Product Description

    When building a powerful server infrastructure, the choice of server chassis is critical. The 2U server chassis is a feature-rich choice, especially for businesses that need efficient storage solutions. Available in 16, 8, or 24 disk slot configurations, the chassis is designed to meet a variety of storage needs and is ideal for data-intensive applications.

    One of the key features of this 2U server chassis is its 12GB backplane, which ensures high-speed data transfer and optimal performance. The backplane supports a variety of disk configurations, allowing users to maximize storage capacity without compromising speed. Whether you are managing large databases, virtual machines or massive file storage, the 12GB backplane provides the necessary bandwidth to ensure your operations run smoothly.

    Additionally, this 2U server chassis is compatible with the CRPS1+1 redundant power supply solution. This compatibility is critical for businesses that value uptime and reliability. Redundant power supplies ensure that servers remain operational even in the event of a power failure, minimizing downtime and protecting critical data. This feature is especially beneficial for organizations that rely on continuous access to their systems.

    All in all, this 2U server chassis with 16, 8 or 24 disk slots, equipped with a 12GB backplane and CRPS1+1 redundant power supply compatibility, provides a powerful solution for modern data centers. Its flexible storage options, high-speed performance and reliability make it an ideal choice for enterprises looking to enhance server capabilities. Investing in this chassis not only meets current needs, but also prepares your infrastructure for future growth.

    13
    5
    4

    Product Certificate

    请自己购买,英文1
    13
    12
    9
    5
    4

    FAQ

    We provide you with:

    Large inventory

    Professional Quality Control

    Good packaging

    Delivery on time

    Why choose us

    1. We are the source factory,

    2. Support small batch customization,

    3. Factory guaranteed warranty,

    4. Quality Control: The factory will test the goods 3 times before delivery

    5. Our core competitiveness: quality first

    6. The best after-sales service is very important

    7. Fast delivery: 7 days for personalized design, 7 days for proofing, 15 days for mass products

    8. Shipping method: FOB and internal express, according to the express you specify

    9. Payment method: T/T, PayPal, Alibaba Secure Payment

    OEM and ODM services

    Through our 17 years of hard work, we have accumulated rich experience in ODM and OEM. We have successfully designed our private molds, which are warmly welcomed by overseas customers, bringing us many OEM orders, and we have our own brand products. You just need to provide pictures of your products, your ideas or LOGO, we will design and print on the products. We welcome OEM and ODM orders from all over the world.
