2U server chassis front panel with lock and redundant power supply cage

Short Description:


  • Product Name: 19-inch 2U-480R Redundant Rack-Mounted Server Chassis
  • Weight: Net Weight 8.3kg (NW) Gross Weight 11.3kg (GW)
  • Material: High-quality, plain galvanized steel

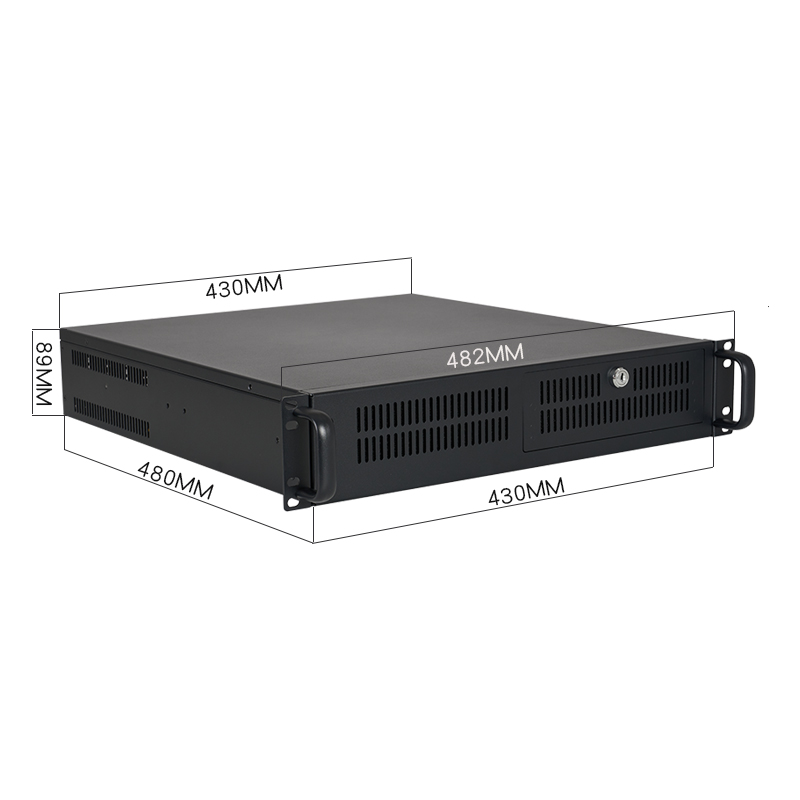

  • Dimensions: Width 482mm (W) x Depth 480mm (D) x Height 89mm (H) (including mounting brackets) Width 430mm (W) x Depth 480mm (D) x Height 89mm (H) (excluding mounting brackets)

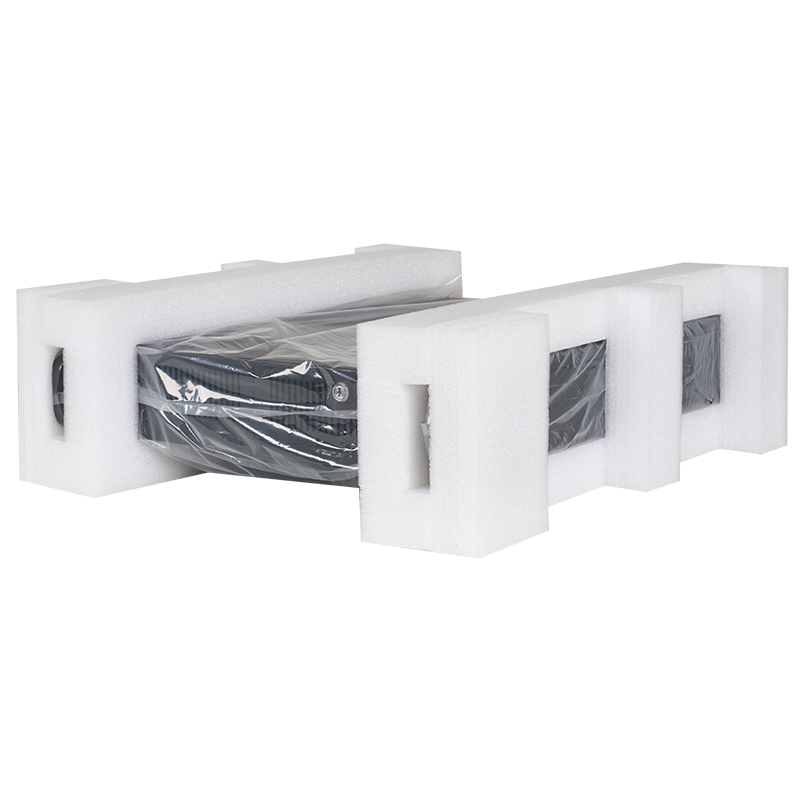

  • Packaging Dimensions: Double-layer corrugated paper (618mm x 563mm x 235mm) with pearl cotton foam
  • Material Thickness: 1.2mm
  • Expansion Slots: Supports 7 half-height graphics card slots

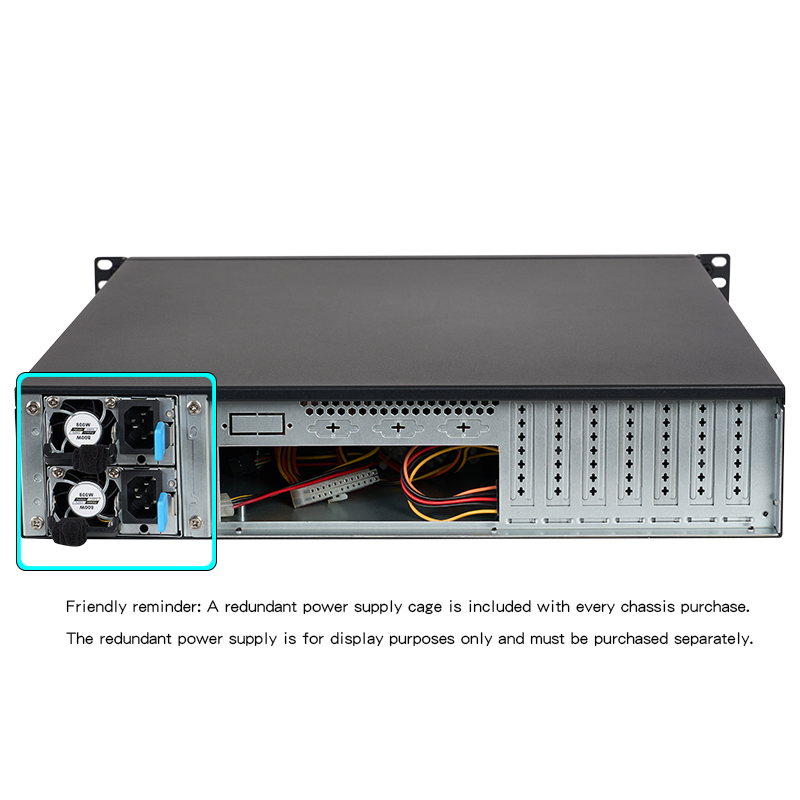

  • Redundant Power Supply: Comes with a 1+1 redundant power supply cage and cables (brand new) Note: 1+1 redundant power supply is purchased separately.
  • Supported motherboards: 12" x 9.6" (305 x 255mm, backwards compatible) (ATX, MATX, and MINI-ITX motherboards).
  • Optical drive support: Not supported.

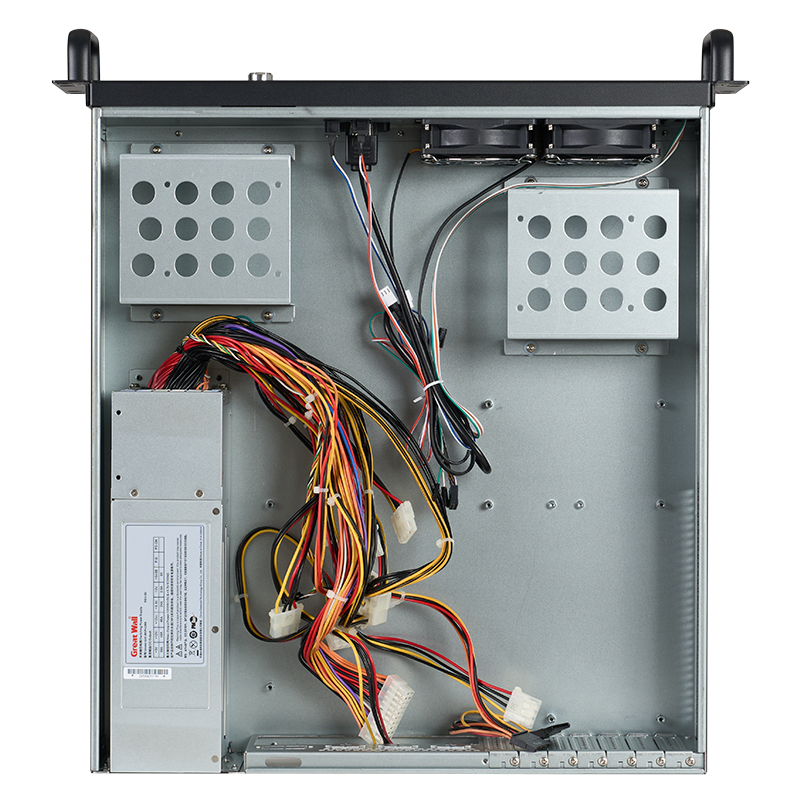

  • Supported hard drives: Four 3.5" bays + two 2.5" bays.
  • Fan support: Two 8025 silent fans, removable dustproof grille.
  • Panel configuration: Two USB 2.0 ports, one power switch, one reset switch.
  • Note: CPU height limit: 68mm, graphics card length limit: 279mm, graphics card height limit: 63mm.
  • Chassis features: Anti-scorching interior, scratch-resistant.
  • Product Detail

    Product Tags

    Product Description

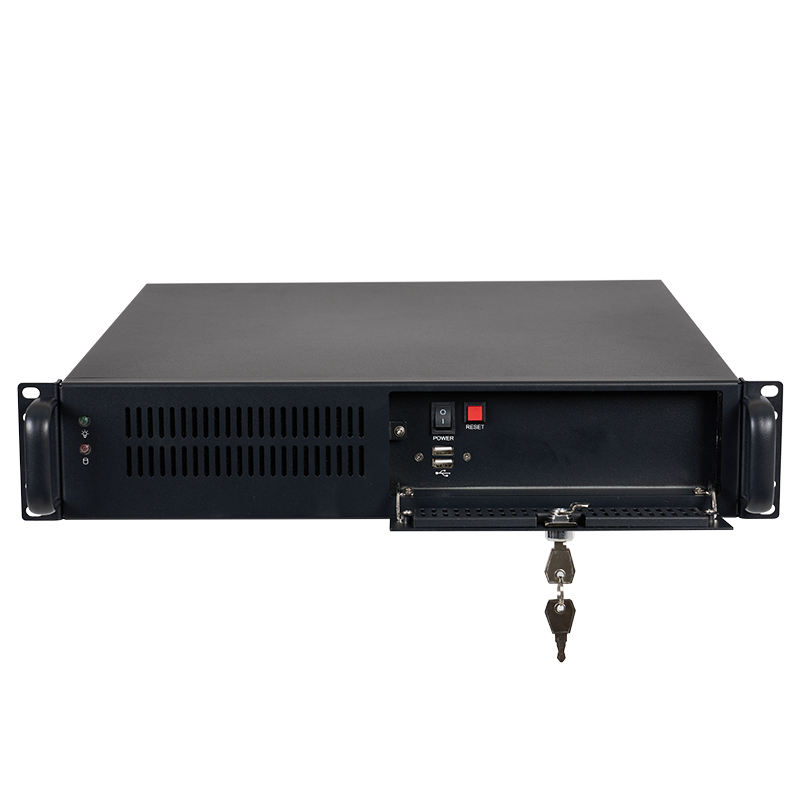

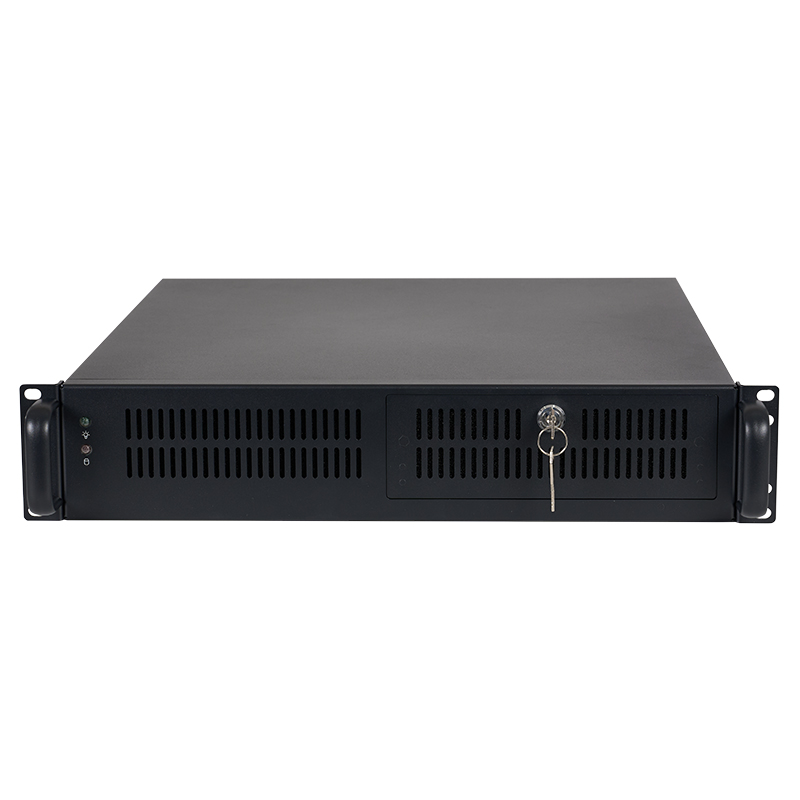

    Hey there! So, Our Corporation has just rolled out its latest 2U server chassis, and honestly, it’s pretty impressive. Designed with security and reliability in mind, especially for businesses and data centers, it ticks all the boxes. One feature that really stands out is the front panel — it’s got a built-in lock to keep sensitive parts safe. This means only authorized folks can get in, adding that extra layer of physical security. It’s a small thing, but it really helps prevent unwanted tampering and keeps your important data and hardware protected.

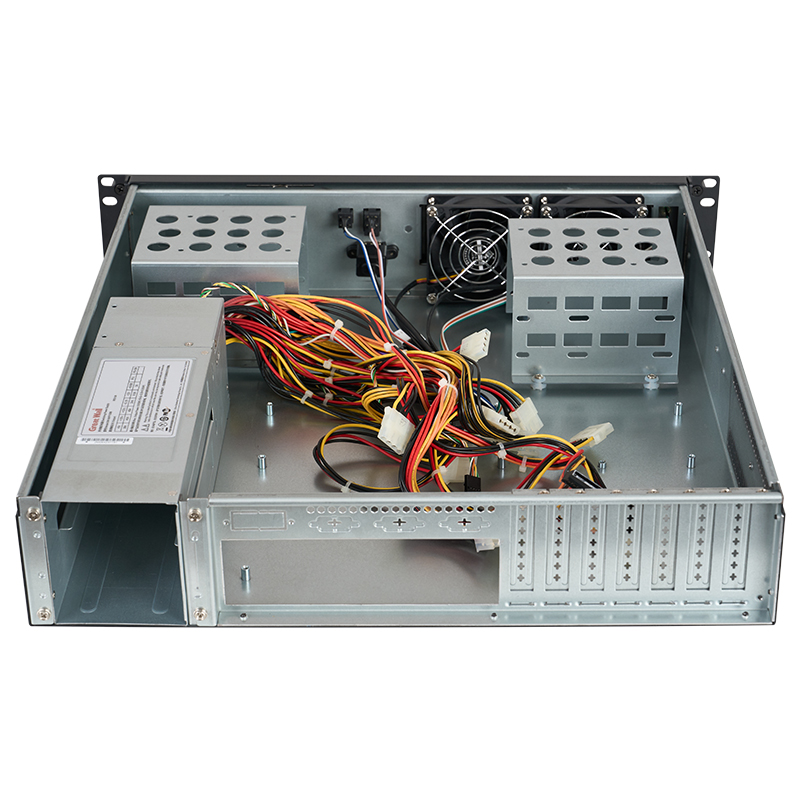

    Besides the secure front panel, the chassis includes a sturdy, redundant power supply cage. Basically, this setup helps keep things running smoothly. If one power supply goes down, the other kicks in without any hiccups, so there’s no downtime. That’s a huge deal in places where uptime is everything — like data centers, banks, or hospitals. And don’t worry about maintenance — it’s designed for easy access, so swapping out a power supply or doing repairs doesn’t mess with the whole system.

    Oh, and they’ve thought about setup, too. It comes with all the necessary cables right out of the box, so you can get things up and running pretty quickly. That means less hassle, less downtime, and a faster way to get your systems back online. All in all, the Our  2U server chassis offers solid physical security, dependable power, and a hassle-free setup. It’s a pretty smart choice for any organization looking to beef up their IT infrastructure with something reliable, secure, and high-performing. These features make life way easier when it comes to maintenance and keeping everything running smoothly.
