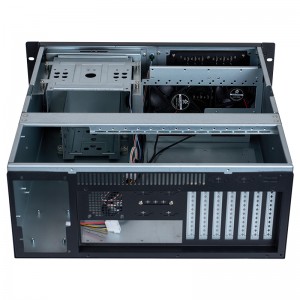

4U rack case, black, double-door design, 1.2mm thick.

Short Description:


  • Product Name: 19-inch Rack-Mounted Industrial Control Cabinet

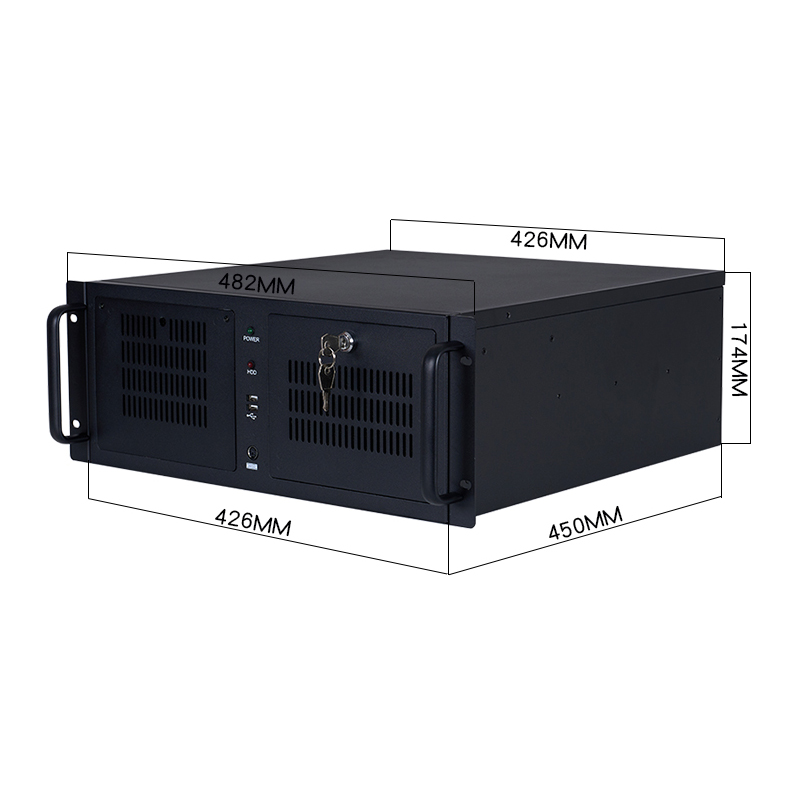

  • Chassis dimensions: 482mm (W) × 450mm (D) × 174mm (H) (including mounting ears and handles)
  • Product Color: black
  • Material: Environmentally friendly, fingerprint-resistant, high-quality SGCC galvanized sheet
  • Thickness: 1.2MM
  • Optical drive support: 1 x 5.25'' optical drive bay
  • Product weight: Net weight 9.87KG / Gross weight 11.8KG
  • Supported power supplies: Standard ATX power supply, PS/2 power supply
  • Supported graphics cards: 7 full-height PCI slots (14 slots available upon customization)
  • Supported hard drives: Supports three 3.5'' hard drives + two 2.5'' hard drive bays.
  • Supported fans: one 12cm fan and one 8cm fan on the front panel (silent fan + dust cover)
  • Panel: USB 2.0 *2, Power switch *1, Reset switch *1 Power indicator light *1, Hard drive indicator light *1, 1 PS/2
  • Supported motherboards: PC motherboards with dimensions of 12''*9.6'' (305*265MM) and below (ATX, M-ATX, MINI-ITX motherboards)
  • Carton dimensions: Height 585 × Width 561 × Depth 292 (mm)
  • Graphics card length limit: 315mm
  • CPU height limit: 135mm
  • Product Detail

    Product Tags

    Product Description

    When you're dealing with housing critical electronic gear, a 4U rack case is often the go-to pick for lots of folks working in tech. The '4U' just tells you how tall it is in the rack — 'U' being short for 'rack unit,' which is basically the standard way to make sure everything fits nice and snug. This particular model is pretty solid for storing servers, audio or video gear, and other rack-mountable devices that need secure housing.

    What really sets this 4U rack case apart is its sleek black finish. Not only does it look pretty sharp, but the matte surface also cuts down on glare — super handy if you’re working in a well-lit space. Plus, the double-door design is a game-changer — you can get into it from both the front and back. That kind of access makes life so much easier for techs who need to do maintenance or quick tweaks without messing up their workflow, especially when things are busy.

    Durability-wise, this case really delivers. It's built with 1.2mm thick steel, which strikes a nice balance — tough enough to protect your sensitive gear but not too heavy to handle easily. The design is flexible too, with different mounting options and cable management possibilities, so you can customize it to fit your setup. If you're looking for a reliable, stylish rack solution that kind of ticks all the boxes — durability, easy access, and overall good looks — this 4U rack case is definitely worth considering. It promises to last, while making your life easier when managing your equipment.

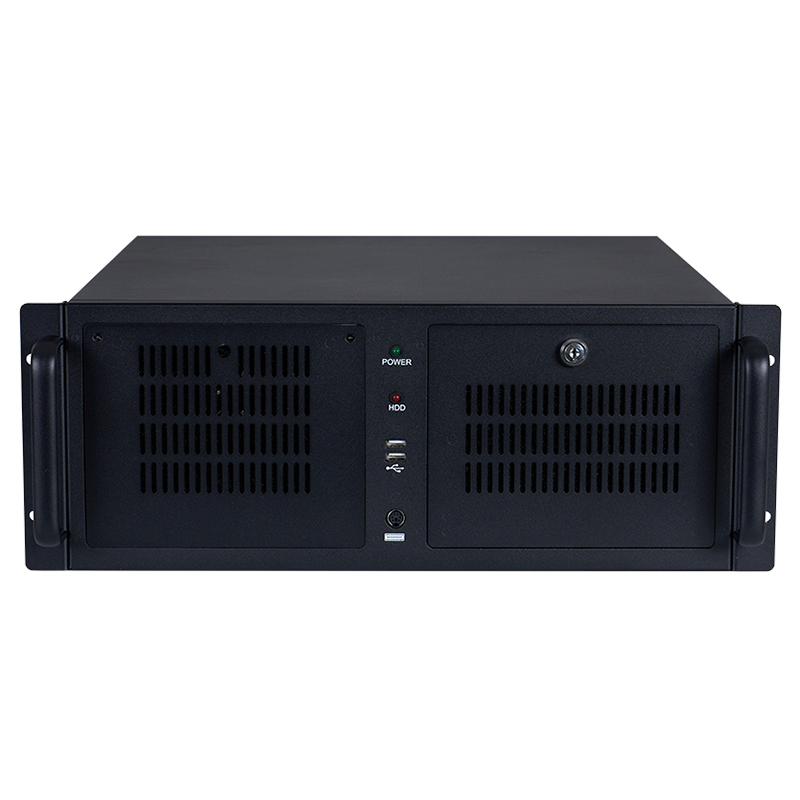

    1

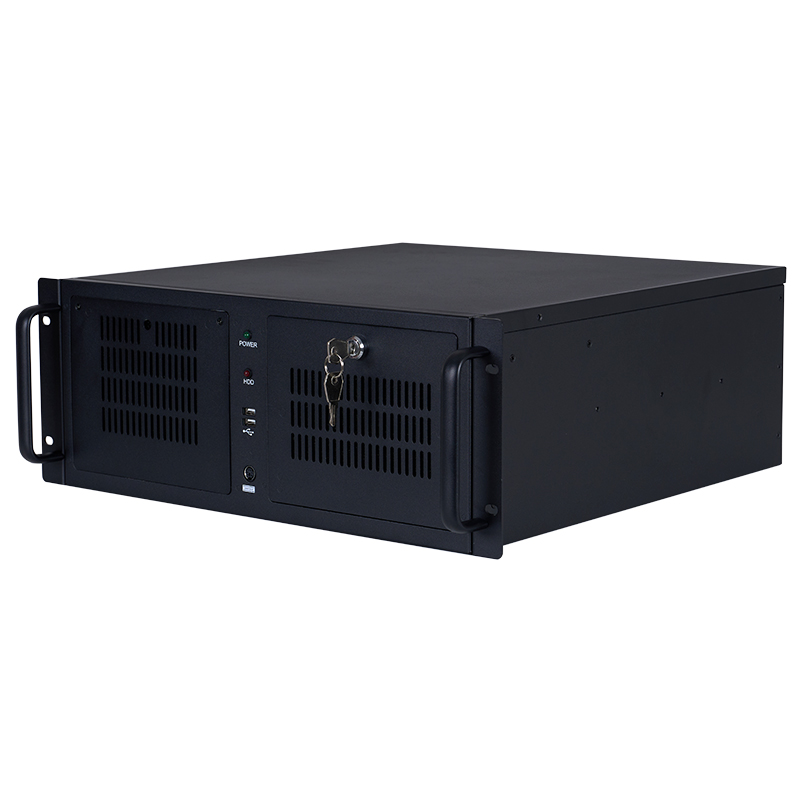

    4

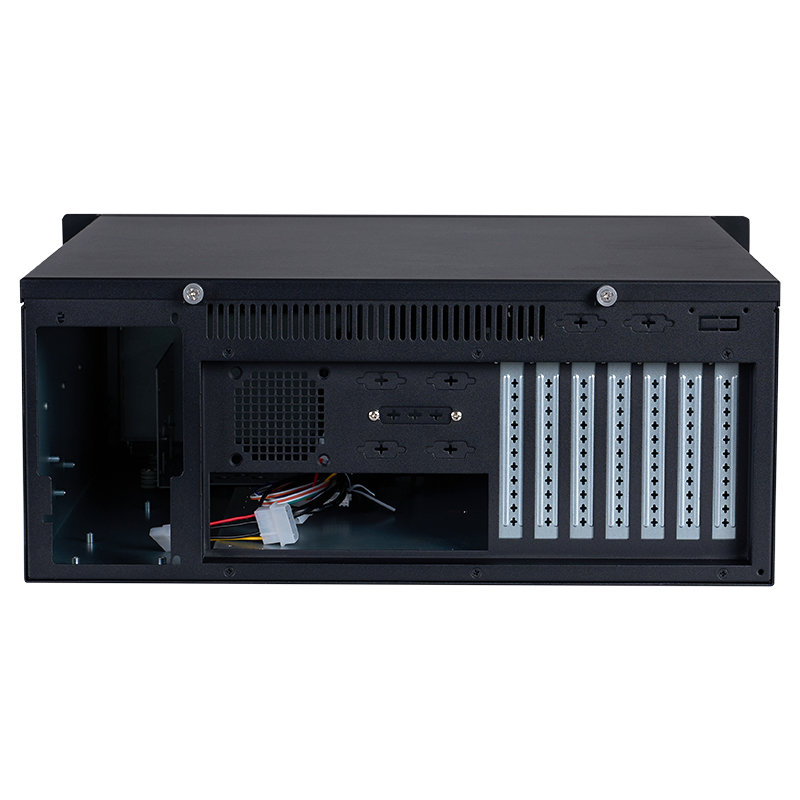

    5

    Product Certificate

    800
    1

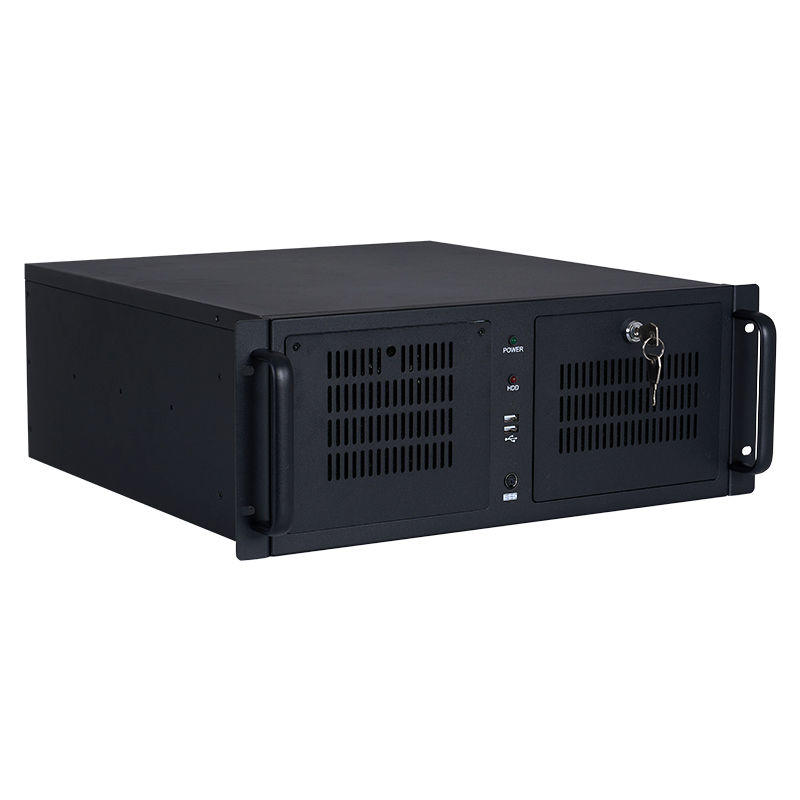

    2
    4

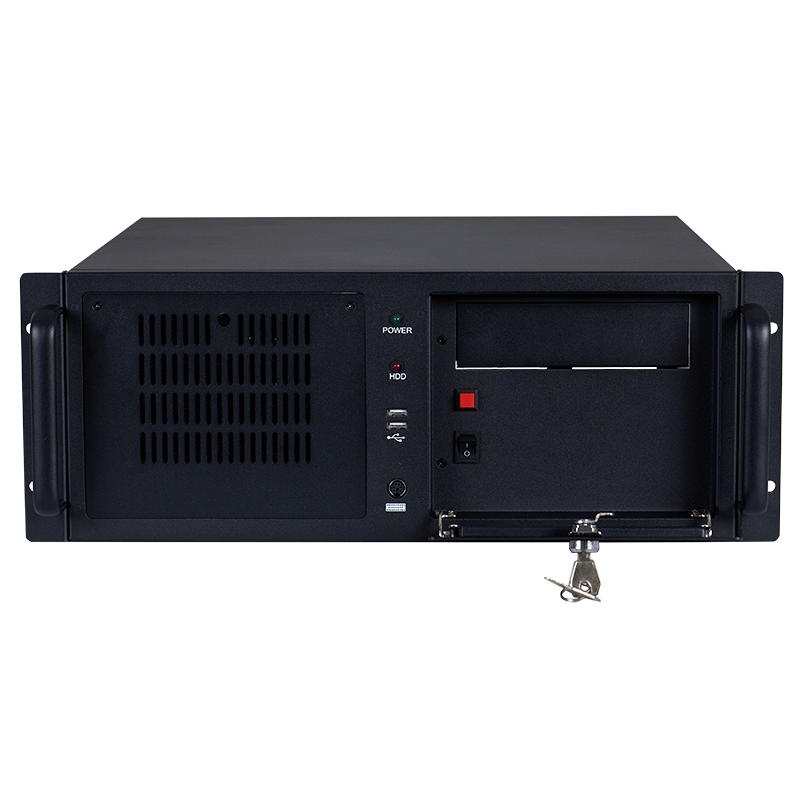

    3
    5

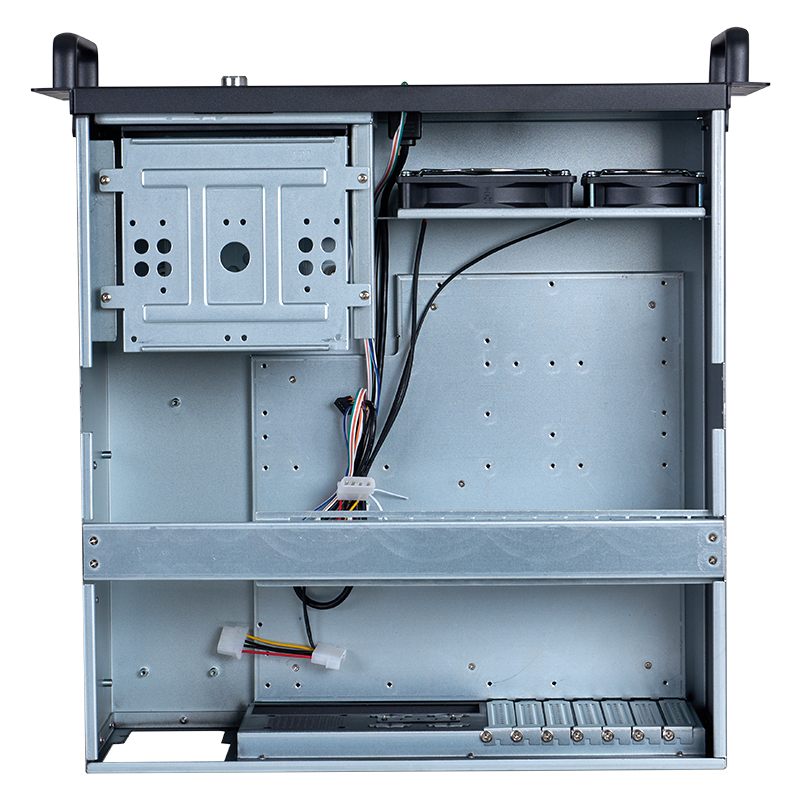

    6

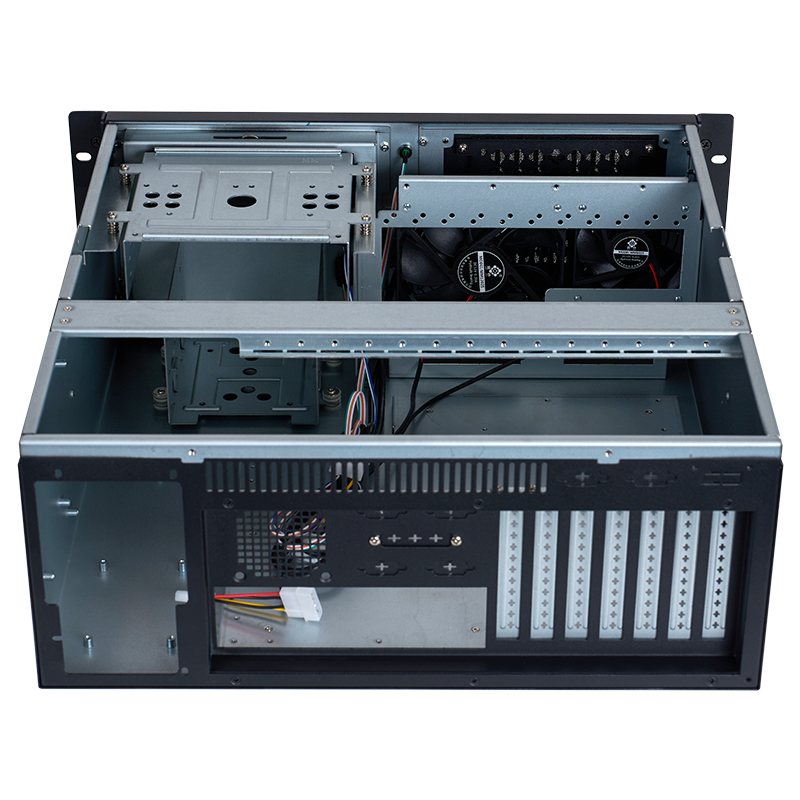

    7

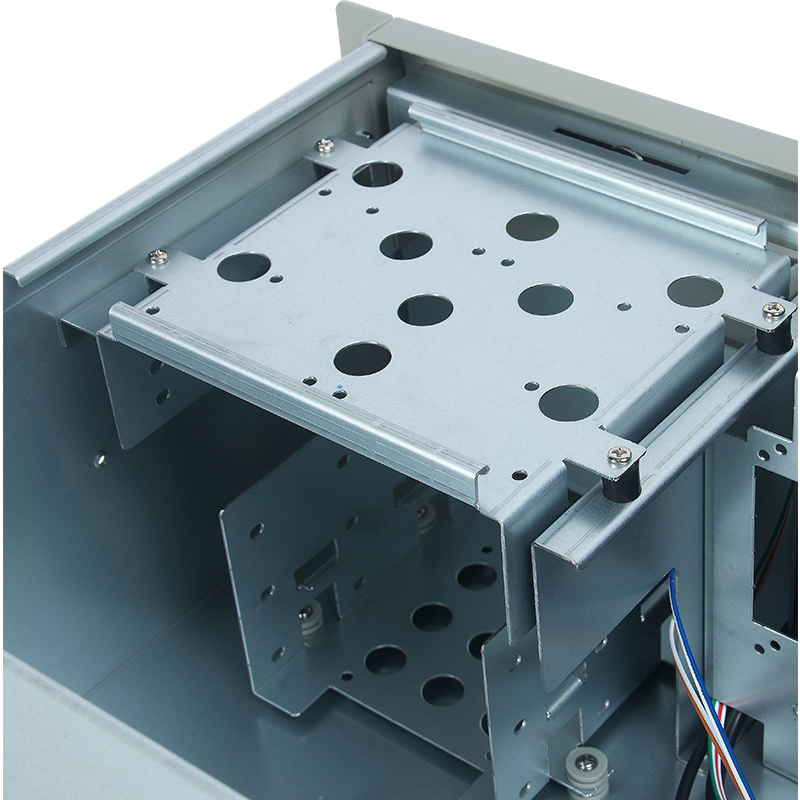

    11槽细节

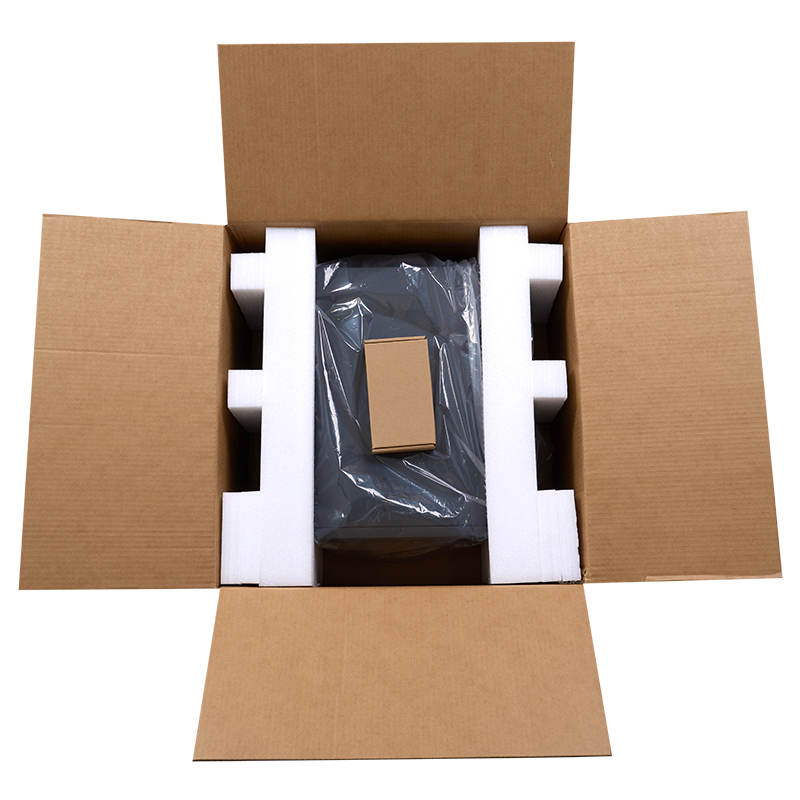

    8

    FAQ

    We provide you with:

    Large inventory

    Professional Quality Control

    Good packaging

    Delivery on time

    Why choose us

    1. We are the source factory,

    2. Support small batch customization,

    3. Factory guaranteed warranty,

    4. Quality Control: The factory will test the goods 3 times before delivery

    5. Our core competitiveness: quality first

    6. The best after-sales service is very important

    7. Fast delivery: 7 days for personalized design, 7 days for proofing, 15 days for mass products

    8. Shipping method: FOB and internal express, according to the express you specify

    9. Payment method: T/T, PayPal, Alibaba Secure Payment

    OEM and ODM services

    Through our 17 years of hard work, we have accumulated rich experience in ODM and OEM. We have successfully designed our private molds, which are warmly welcomed by overseas customers, bringing us many OEM orders, and we have our own brand products. You just need to provide pictures of your products, your ideas or LOGO, we will design and print on the products. We welcome OEM and ODM orders from all over the world.
