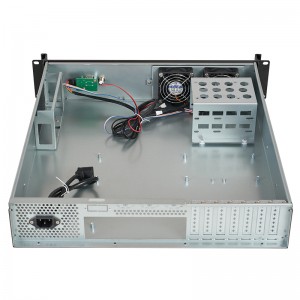

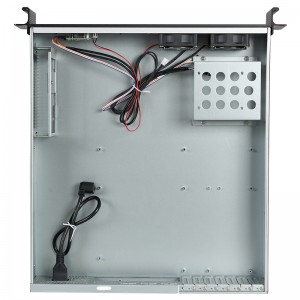

rack mount case 2u suitable for ATX power supplies and CPU height limited to 66 mm

Short Description:

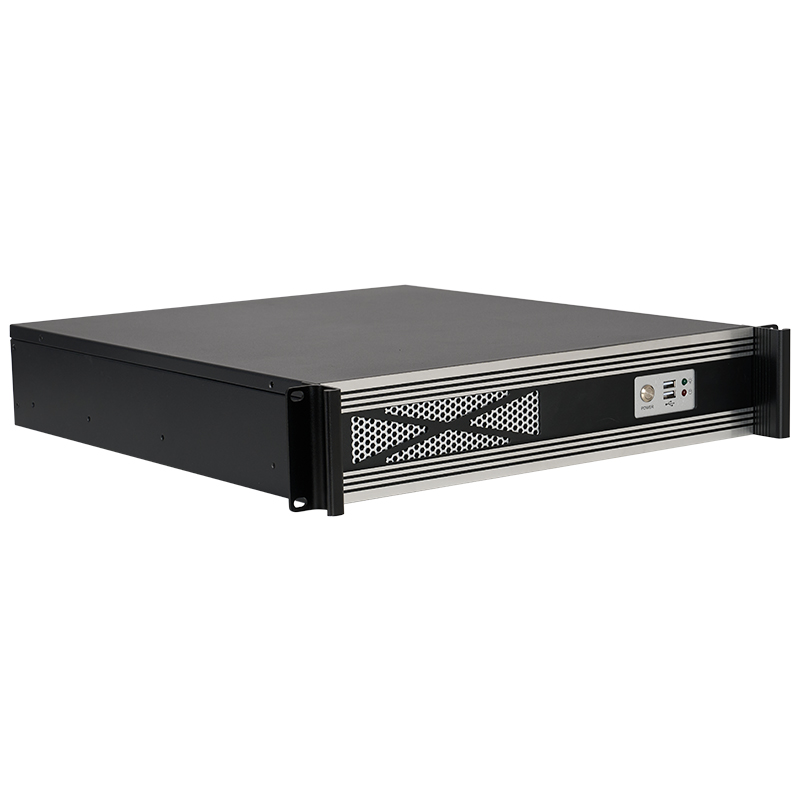

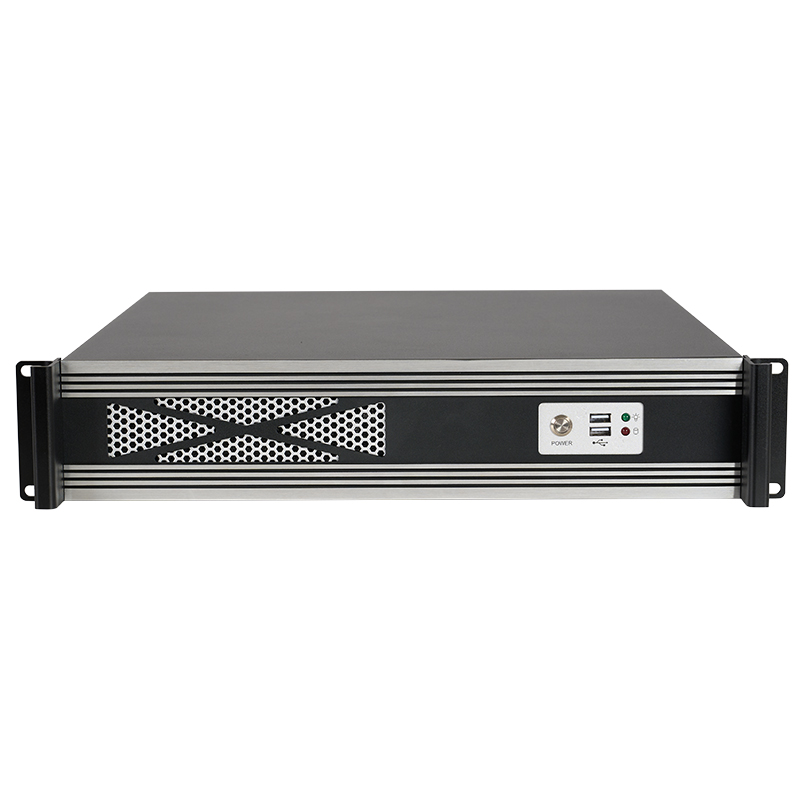

  • Product Name: 19-inch 2U-480T Rack-Mounted Industrial Server Chassis
  • Product Weight: Net Weight 5.7KG (NW) Gross Weight 8.6KG (GW)
  • Product Material: High-quality unpainted galvanized steel + brushed aluminum high-gloss panel

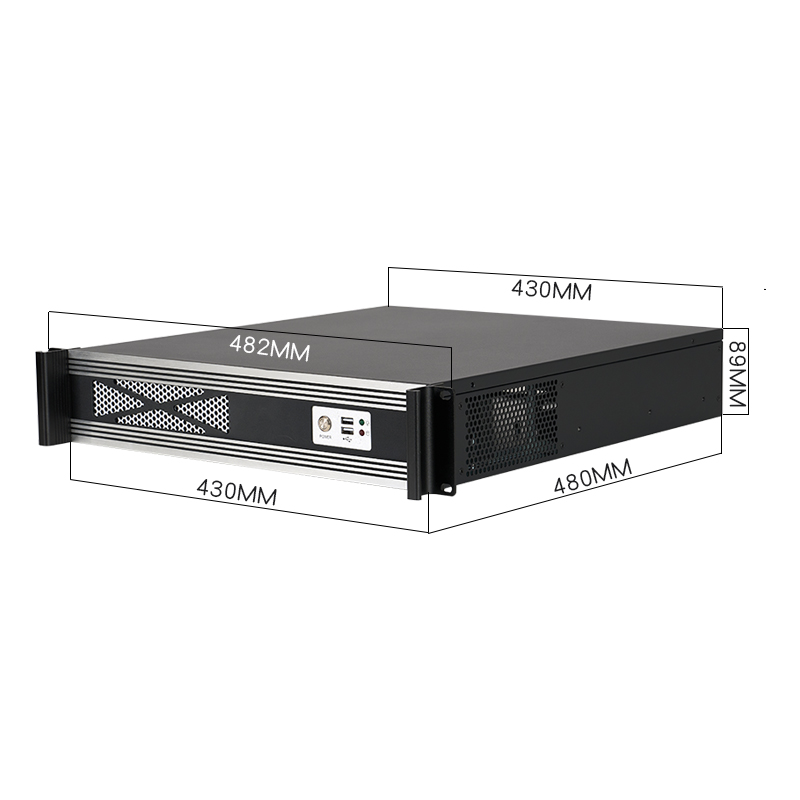

  • Chassis Dimensions: Width 482 * Depth 480 * Height 89 (MM) including mounting ears
  • : Width 430 * Depth 480 * Height 89 (MM) excluding mounting ears
  • Packaging Dimensions: Corrugated cardboard 618*563*235 (MM) Pearl Cotton Double-Layer Packaging
  • Material Thickness: 1.0MM

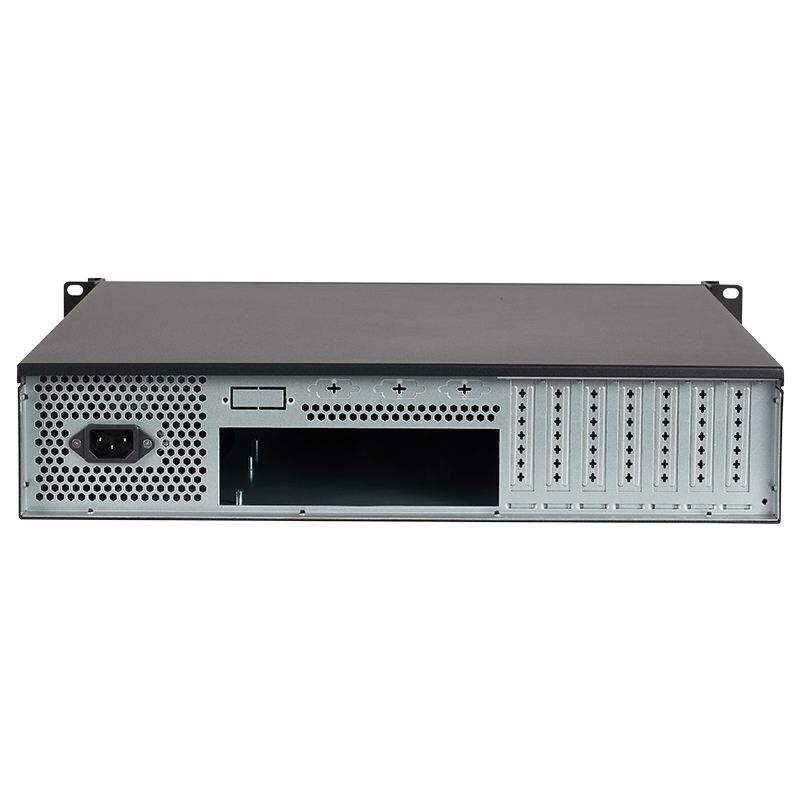

  • Expansion Slots: Supports 7 half-height straight-through graphics card slots

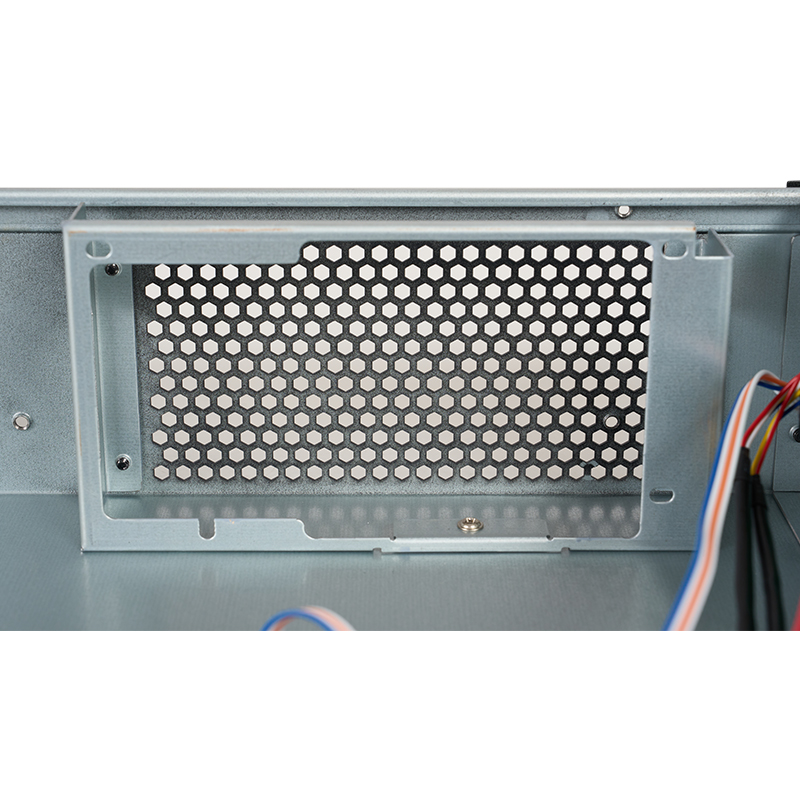

  • Supported Power Supply: Standard ATX power supply bay
  • Supported Motherboards: 12''*9.6'' (305*255MM backward compatible) (ATX/MATX/MINI-ITX motherboards)
  • Supported Optical Drive: Not supported
  • Supported Hard Drives: 2 x 3.5" hard drive bays + 1 x 2.5" hard drive bay
  • Supported Fans: 2 x 7025 silent quality fans

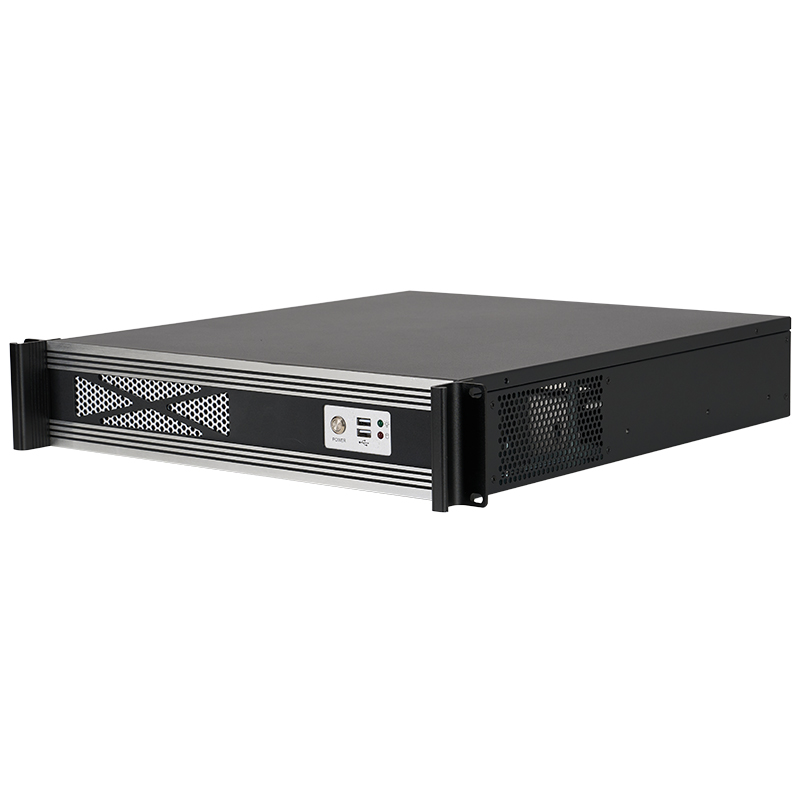

  • Front Panel Configuration: USB 2.0*2, Large Metal Power Switch*1, Hard Drive Indicator*1, Power Indicator*1
  • Note: CPU height limit 66mm, Graphics Card length limit 285mm, Graphics Card height limit 63mm
  • Case Features: Internal heat-resistant, scratch-resistant
  • Product Detail

    Product Tags

    Product Description

    If you're a tech geek or a professional setting up your network gear or a small server, picking the right rack mount case is a big deal. And honestly, a rack mount case 2u is pretty much a great choice if you’re trying to pack your server into a compact, space-saving setup. The 2U size strikes a nice balance — it’s not too bulky, but still offers enough room to customize and add different components. That’s probably why it’s such a popular pick.

    Now, if you're thinking about going with a rack mount case 2u, it's super important to make sure it actually fits your hardware. For example, one common option out there is a case that supports ATX power supplies and has a CPU height limit of 66 mm. That means you can use a regular ATX PSU, which is convenient since they come in all sorts of wattages and efficiencies — you’ve got plenty of choices to match your power needs. The 66 mm CPU height limit is also key — it means you can run pretty powerful processors, but you’ll need to stick to low-profile cooling solutions to keep everything fitting comfortably inside.

    When you’re shopping for a case, paying attention to these specs can save you some serious trouble later on. The 2U size is perfect for small to medium server setups where space is tight. Plus, since it supports standard ATX power supplies, you can pick a power supply that fits your performance and efficiency goals without a hassle. The CPU height limit also helps keep airflow decent, so your system doesn’t overheat. Basically, choosing a case with these features sets you up for a reliable, efficient server that doesn’t break the bank or take up too much space.

    1
    6
    3

    Product Certificate

    800
    1
    7
    8
    6
    2
    3
    4
    5
    10
    9
